AIRx 16x20x1-High-Flow | Our#: 186648

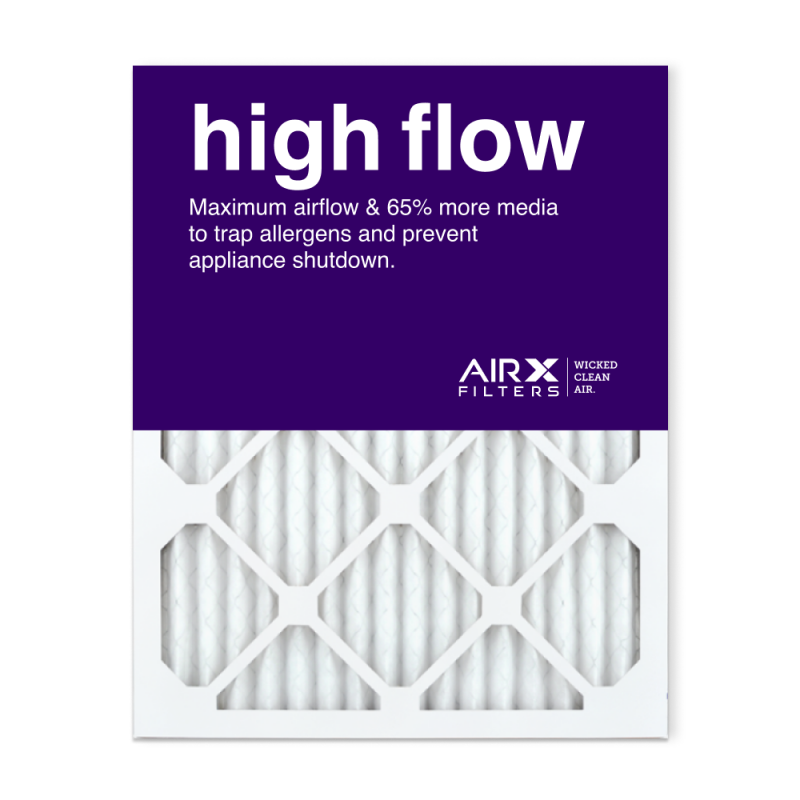

16x20x1 AIRx High Flow Pleated Air Filter

26 review(s)
Average rating 5/5
5 stars
4 stars
3 stars
2 stars
1 star

AIRx 16x20x1-High-Flow | Our#: 186648

  •  Fast Shipping & Free Returns
  •  100% Compatibility Guarantee

Reduce common allergy symptoms

  • Improves Air Flow
  • 65% More Filter Media
  • Great for All Systems!
  • Can Reduce Energy Costs
  • Actual Dimensions: 15 ½" x 19 ½" x ¾"

5 people in your area recently purchased this product!

  •  Fast Shipping & Free Returns
  •  100% Compatibility Guarantee
Frequently Purchased Together
Frequently Purchased Together

Product Details

Having trouble with your AC or Furnace shutting down or struggling to keep up with heating or cooling needs?  Energy bills costing too much?  The New AIRx High Flow filter solves the problem with improved airflow of ordinary pleated filters.

Better airflow means your AC or Furnace doesn't have to work as hard and will heat or cool your home in less time and at a lower energy cost.

With 65% more filter media, High Flow greatly improves air flow while reducing potentially harmful pollutants in your air.

  • Perfect for all HVAC systems, especially older or sensitive systems.
  • MERV 11 rating means the filter attracts household allergens like dust, pollen, mold spores, dander, smoke and smog.
  • Did we mention 65% more pleated media?!
  • Made with pride in the USA.
  • Fast Shipping and Free Returns.

What does this air filter remove?


Do you want to know about the technical specs?

Nominal Dimensions
16 x 20 x 1"
Actual Dimensions
15 ½ x 19 ½ x ¾"
Filter Media
Electrostatically charged 100% synthetic gradient media that does not support microbiological growth
Filter Support Grid
30 gauge galvanized expanded metal grid
Moisture resistant double-wall beverage board
Max Temperature
180F (82C) continuous service, peak 225F (107C)
Max Humidity
Resistant to 100% R.H.
Initial Resistance
0.14" WC
Rated Velocity
295 FPM

How to change your furnace/air-conditioner/HVAC air filter

Estimated time: 10 minutes or less


  1. Determine the location of your filter

    Your forced air system will be similar, whether or not it is a heating (furnace) or cooling (AC) system – or both. The furnace filter housing/slot is located right next to the heating/cooling system’s air handler or blower. Your filter(s) may also be located in a return grille on the wall or ceiling of your home.

  2. Determine the type/size of filter that you use

    Typically, the dimensions or part number of the filter will be printed on the filter frame. Use this information to order a new filter.

  3. Purchase a new air filter from

    Visit and purchase a new filter. Use our filter finders to verify the correct match.

  4. Remove the old filter

    Turn off the power to the heating/cooling system and remove the old filter from its housing/slot and discard.

  5. Insert the new filter

    Pay attention to any airflow direction arrows printed on the frame of the new filter. Install the filter by sliding it into the filter housing/slot with the airflow arrow pointing towards the blower. If installing the filter in a wall or ceiling grille – the airflow arrow should point towards the wall or ceiling. Turn on the power to the forced air system.

    Enjoy cleaner air!
