Frigidaire PureSource Ultra Refrigerator Water Filter - ULTRAWF

Frigidaire ULTRAWF | Our#: 175109

1 Year Purchase Guarantee - Free returns for a year, up to $1000 of purchase protection.

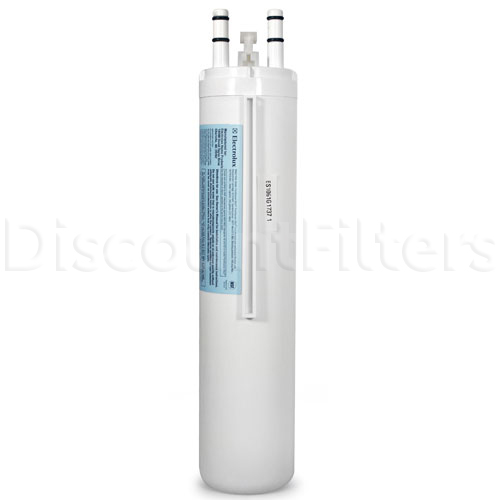

Frigidaire PureSource Ultra Refrigerator Water Filter - ULTRAWF
Description

Refrigerator water filters reduce contaminants found in water from well or municipal sources. Filter model ULTRAWF fits Frigidaire and other brands. It traps and removes impurities like dirt, sediment, turbidity, chlorine and other particles. The factory original filter meets NSF International Standards 42 and 53. It produces water at a flow rate of half a gallon per minute. The filter processes up to 200 gallons. Replace the filter once every six months. If the flow rate or water quality decreases, replace the filter immediately.

  • meets NSF International Standards 42 and 53
  • reduces chlorine, dirt, turbidity and other impurities
  • accommodates 30 - 100 PSI and 33 - 100 °F
  • 200 gallon capacity
  • 0.5 GPM guaranteed flow rate
  • easy to install and operate
  • replace once every six months

The Frigidaire ULTRAWF is compatible with the following obsolete or alternate filter part numbers:

242017800
242017801
242017802
242069601
3957684
46-9919
46-9999
469999
9919
9999
A0094E28261
CF1
CW-ULTRAWF
EMD
OPFE1-RF300
PS2364646
RF-02
RWF1180
ULTRA-WF
ULTRAWF
WFC4401

How To Install The Frigidaire ULTRAWF Filter:

How to install the Frigidaire ULTRAWF filter
  1. Turn Off the ice maker by raising the wire signal arm.
  2. Remove the filter by pushing on the end/face of the filter.
  3. Slide the old water filter cartridge straight out of the housing and discard it.
  4. Using the alignment guide, slide it gently into the filter housing until it stops against the snap-in connector at the back of the housing.
  5. Push firmly until the cartridge snaps into place (you should hear a click as the cartridge engages the snap-in connector).
  6. Turn On the ice maker by lowering the wire signal arm.
  7. Press and hold the Water Filter button on the Ice & Water Dispenser control panel for three seconds. When the display changes from Red to Green, the status has been reset.
  8. After replacing the water filter and in order for the ice maker to work properly, it is necessary to clear air from water filter tubing. Once ice maker begins making ice, allow the bucket to fill completely, then discard the first TWO FULL buckets of ice. It will take at least two days to completely fill the bucket on regular ice aking mode or 1 1/2 days on fast ice mode.
