Lennox X8306 | Our#: 177103

Lennox X8306 Expandable MERV 16 Filter Kit - 16x25x5

Lennox X8306 | Our#: 177103

  •  Fast Shipping & Free Returns
  •  100% Compatibility Guarantee
Lennox X8306 Expandable MERV 16 Filter Kit - 16x25x5

3 people in your area recently purchased this product!

$266.15

In Stock
Ships Monday
Frequently Purchased Together-
  •  Fast Shipping & Free Returns
  •  100% Compatibility Guarantee
Frequently Purchased Together
Lennox X8312 Expandable MERV 16 Replacement Filter - 16x25x5
Lennox X8312 Expandable MERV 16 Replacement Filter - 16x25x5
MFG#: X8312
$179.47

Product Details

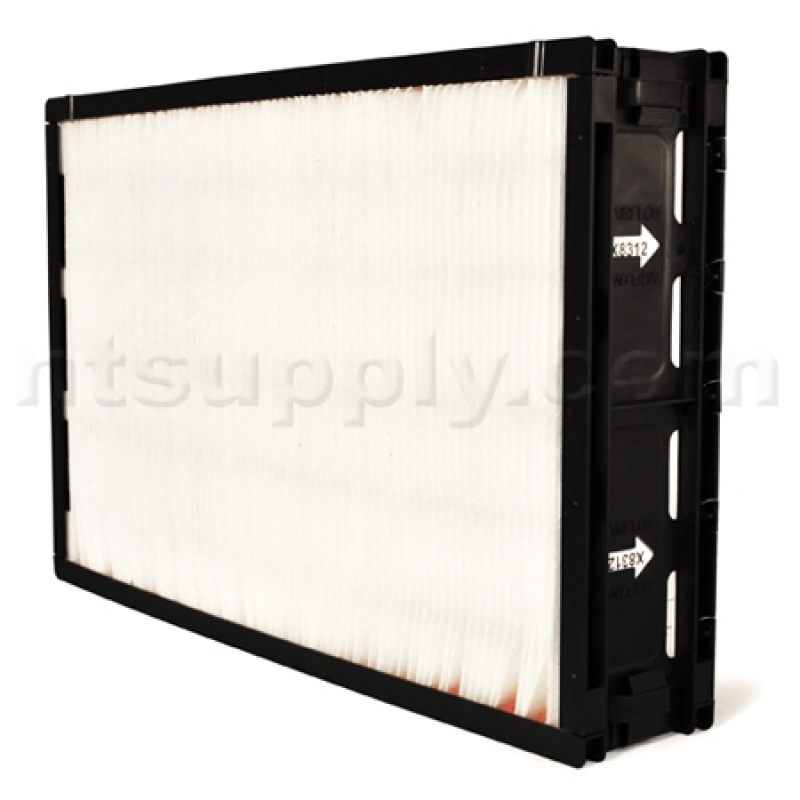

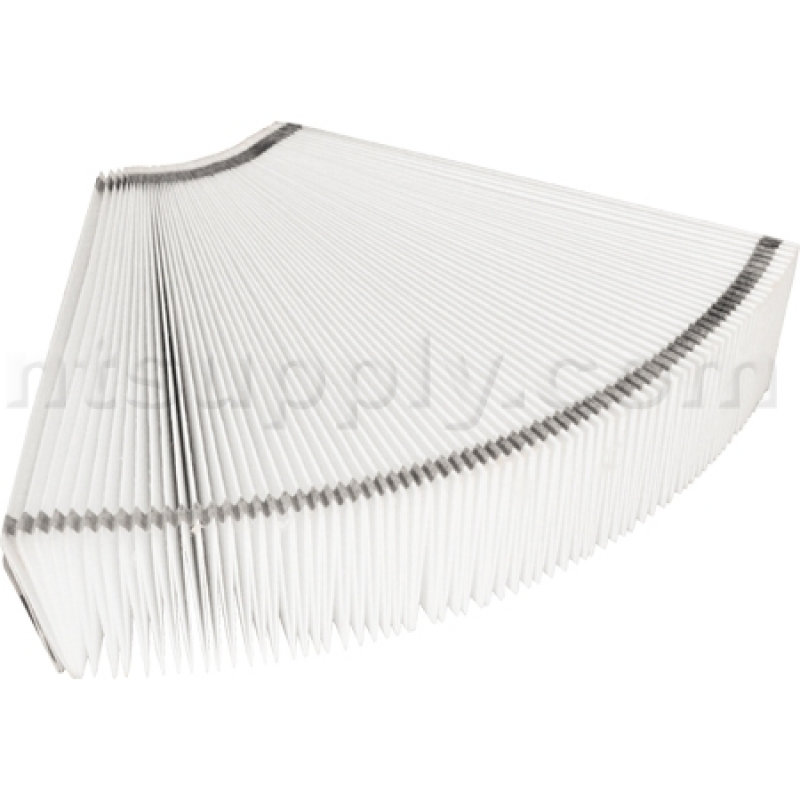

Factory original accordian-style filter kit from Lennox. This MERV 16 filter captures particles down to .3 microns. This expandable media air filter ships like a collapsed accordian and is expanded into included frame. Cartridge can last up to one year, though product replacement life cycle depends on the individual conditions and needs of your home.

  • Rated at MERV 16 and removes up to 95% of particles, down to .3 microns.
  • Synthetic media offers large surface area for maximum dirt holding capacities with minimum air resistance

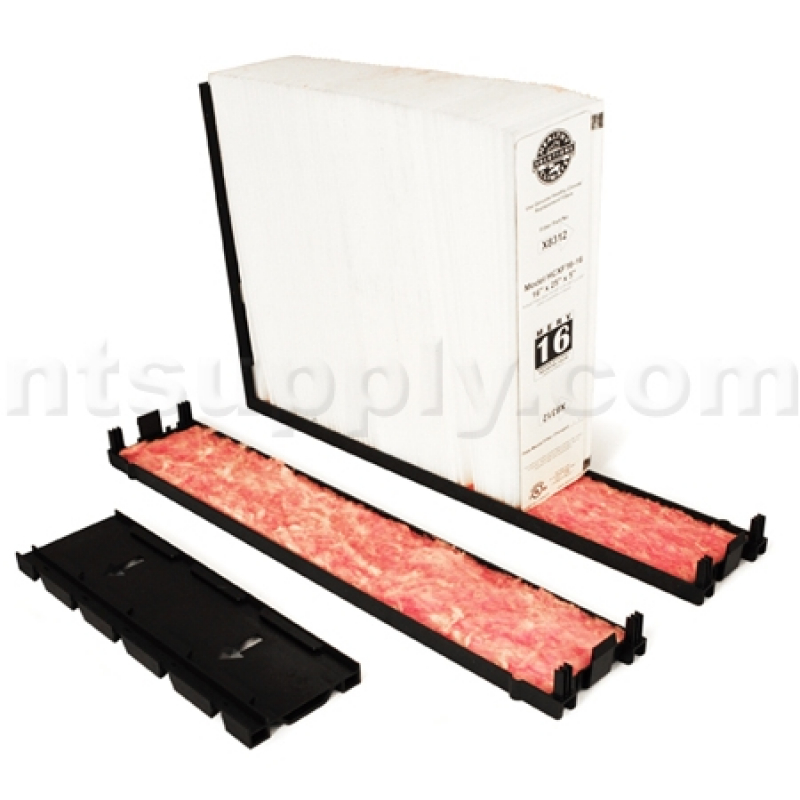

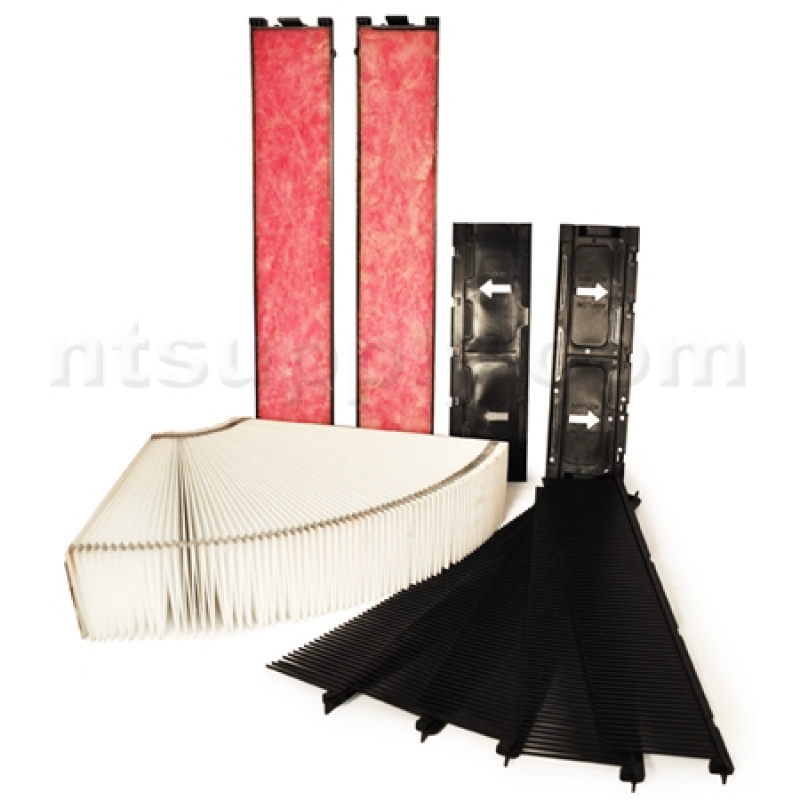

  • (1) Expandable Filter Media - # X8312  / (1) Plastic Frame  / (1) Pleat Spacers
  • Fits Healthy Climate PMAC (Pleated Media Air Cleaner) cabinets
  • Nominal Dimensions: 16" x 25" x 5"
  • Actual Size of Assembled Frame - 15-3/4" X 24-3/4" X 4-7/16"
  • NOTE: Plastic frame gets re-used.  When changing filter - replace media but do not discard plastic frame.
  • Factory original, OEM product

Replaces These Filters:

Lennox:
HCF16-10
HCXF16-10
HCXF16-16
X6670
X8309
X8312
National Filter Sales:
16x25x5

Fits In These Systems:

Bryant/Carrier:
MPKA016
Lennox:
HCC16-28

Lennox® and Healthy Climate® are registered trademarks of Lennox International Inc.. National Trade Supply, Inc, DiscountFilters.com and AIRx are not affiliated with Lennox International Inc.



How to change your furnace/air-conditioner/HVAC air filter

Estimated time: 10 minutes or less

Steps

  1. Determine the location of your filter

    Your forced air system will be similar, whether or not it is a heating (furnace) or cooling (AC) system – or both. The furnace filter housing/slot is located right next to the heating/cooling system’s air handler or blower. Your filter(s) may also be located in a return grille on the wall or ceiling of your home.

  2. Determine the type/size of filter that you use

    Typically, the dimensions or part number of the filter will be printed on the filter frame. Use this information to order a new filter.

  3. Purchase a new air filter from DiscountFilters.com

    Visit DiscountFilters.com and purchase a new filter. Use our filter finders to verify the correct match.

  4. Remove the old filter

    Turn off the power to the heating/cooling system and remove the old filter from its housing/slot and discard.

  5. Insert the new filter

    Pay attention to any airflow direction arrows printed on the frame of the new filter. Install the filter by sliding it into the filter housing/slot with the airflow arrow pointing towards the blower. If installing the filter in a wall or ceiling grille – the airflow arrow should point towards the wall or ceiling. Turn on the power to the forced air system.

    Enjoy cleaner air!
