AIRx 20x25x5AB-AT-ALLERGY | Our#: 177962

20x25x5 AIRx ALLERGY Abatement Technologies H105 Replacement Air Filter - MERV 11

AIRx 20x25x5AB-AT-ALLERGY | Our#: 177962

  •  Free Shipping & Free Returns
  •  100% Compatibility Guarantee

Reduce common allergy symptoms

  • Reduces allergy irritating particles
  • Captures allergens like dust, mold spores, pet dander, dust mite debris and more
  • Lessens odors from car fumes & smog
  • Creates cleaner indoor air
  • Actual Dimensions: 19 ¾" x 24 ¼" x 4 ⅞"

4 people in your area recently purchased this product!

  •  Free Shipping & Free Returns
  •  100% Compatibility Guarantee
Frequently Purchased Together

Product Details

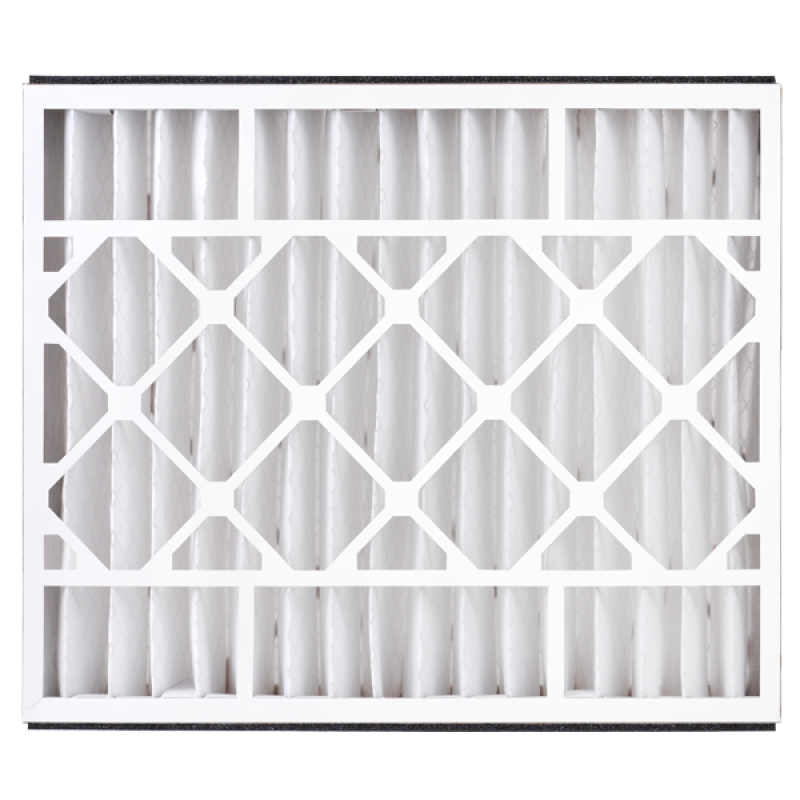

Replacement for Abatement Technologies H105 MERV 11 Filter - 20x25x5

(Dimensions - Nominal 20x25x5)

The pleated "final" filter is an important component of the CAP100-U whole house air purifier from Abatement Technologies.   The deep pleated media filter provides ample surface area for filtration and long service life. This filter is not manufacturered by Abatement Technologies.  This filter uses white media and should not be used with UV Lamps.  It is not UV resistant.

Features:

  • Fits both CAP100-U Air Purifier, which uses media filters only, no lamps
  • Rated MERV 11
  • White media - do not use with UV Lamps.
  • Replace filter every 6 months
  • Nominal 20x25x5

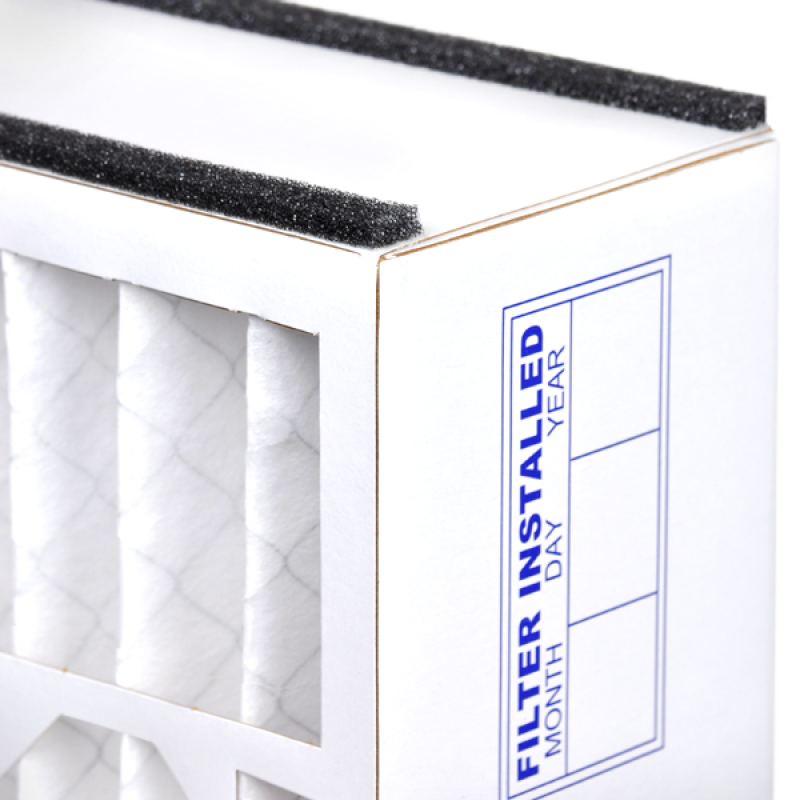

  • Foam gasketing on filter insures tight fit and eliminates air bypass




Do you want to know about the technical specs?

Nominal Dimensions
20 x 25 x 5"
Actual Dimensions
19 ¾ x 24 ¼ x 4 ⅞"
Filter Media
Electrostatically charged 100% synthetic gradient media that does not support microbiological growth
Filter Support Grid
30 gauge galvanized expanded metal grid
Frame
Moisture resistant double-wall beverage board
Max Temperature
180F (82C) continuous service, peak 225F (107C)
Max Humidity
Resistant to 100% R.H.

Replaces These Filters:

National Filter Sales:
20x25x5
PF-02-202505AB-1


How to change your furnace/air-conditioner/HVAC air filter

Estimated time: 10 minutes or less

Steps

  1. Determine the location of your filter

    Your forced air system will be similar, whether or not it is a heating (furnace) or cooling (AC) system – or both. The furnace filter housing/slot is located right next to the heating/cooling system’s air handler or blower. Your filter(s) may also be located in a return grille on the wall or ceiling of your home.

  2. Determine the type/size of filter that you use

    Typically, the dimensions or part number of the filter will be printed on the filter frame. Use this information to order a new filter.

  3. Purchase a new air filter from DiscountFilters.com

    Visit DiscountFilters.com and purchase a new filter. Use our filter finders to verify the correct match.

  4. Remove the old filter

    Turn off the power to the heating/cooling system and remove the old filter from its housing/slot and discard.

  5. Insert the new filter

    Pay attention to any airflow direction arrows printed on the frame of the new filter. Install the filter by sliding it into the filter housing/slot with the airflow arrow pointing towards the blower. If installing the filter in a wall or ceiling grille – the airflow arrow should point towards the wall or ceiling. Turn on the power to the forced air system.

    Enjoy cleaner air!
