ZEPHYR Filtration Z20203-M13 | Our#: 190681

20x20x3 MERV 13 Return Grille Filter, 2-Pack

5
10 review(s)

Average rating 4.6/5
5 stars
(9)
4 stars
(0)
3 stars
(0)
2 stars
(0)
1 star
(1)

ZEPHYR Filtration Z20203-M13 | Our#: 190681

  •  Fast Shipping & Free Returns
  •  100% Compatibility Guarantee
20x20x3 Honeywell FC40R1003 Replacement Return Grille Filter - MERV 13 For use in return-air filter frame assemblies.
  • 3" depth fits in all return grilles, ceiling or wall mount
  • Increased pleat count provides same amount of media as 5" design

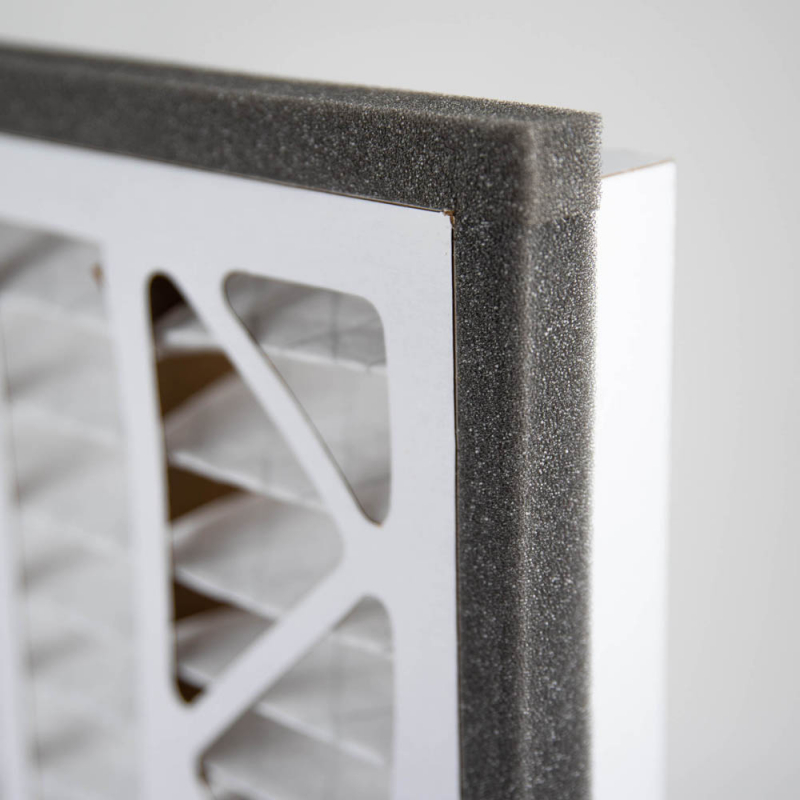

  • Foam Gasket peripheral header prevents dust bypass

4 people in your area recently purchased this product!

  •  Fast Shipping & Free Returns
  •  100% Compatibility Guarantee
Frequently Purchased Together

Product Details

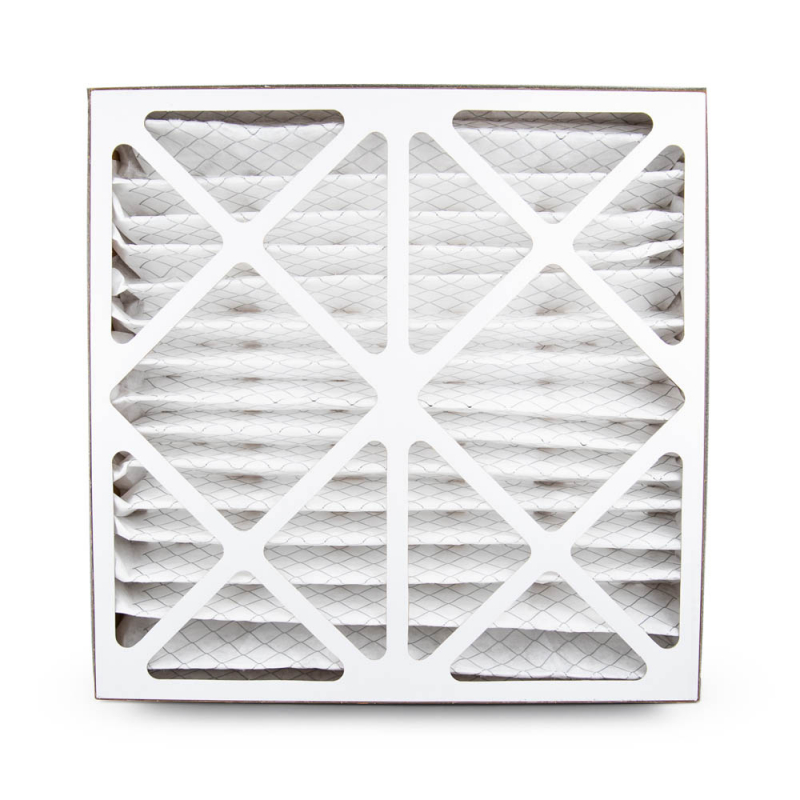

20x20x3 MERV 13 Return Grille Filter, 2-Pack

These specialized return grille filters will fit standard 1" return grille applications - and will offer longer service life and greatly increased filtration efficiency. Many homes across the country have filter grilles, located at  the return air openings, that accommodate a one-inch filter. Because of the one-inch limitation homeowners are limited as to their choice of filters, without retrofitting their systems. A one inch filter by nature has low surface area and needs to be replaced often.  Higher efficiency one-inch filters load with dirt quickly and can restrict airflow.

Our MERV 13 return grille filters are designed to replace the one-inch filter without any retrofitting. It's unique gasket fits into the one-inch filter slot with the excessive depth of the filter protruding in the duct system. The deeper pleats of the filter offer lower pressure drop, less strain on HVAC equipment, and much longer filter life!

FEATURES:

  • Self-sealing flexible gasket eliminates air by-pass - a superior design to filters that use a rigid gasket (like the original Honeywell FC40R)
  • Fit most 1" return air grilles with out modification
  • Last up to 6 months or longer
  • Supports biannual preventative maintenance schedules
  • Value priced
  • Replaces Honeywell part number FC40R1003
  • Low-pressure drop reduces energy consumption and maintenance and extends useful lifetime of your HVAC system
  • Compliant with California Title 24, which requires MERV 13 filtration efficiency
  • 10-12 pleats-per-foot filter face area
  • Outside dimensions to end of gasket - 20" X 20"  / Inside dimensions to ends of carboard - 18-3/8 X 18-3/8"
