High Flow CSR Plus-XC² System

High Flow CSR Plus-XC² System (HF CSR PLUS-XC(2) 2SR-X W/LPA (9347-11))

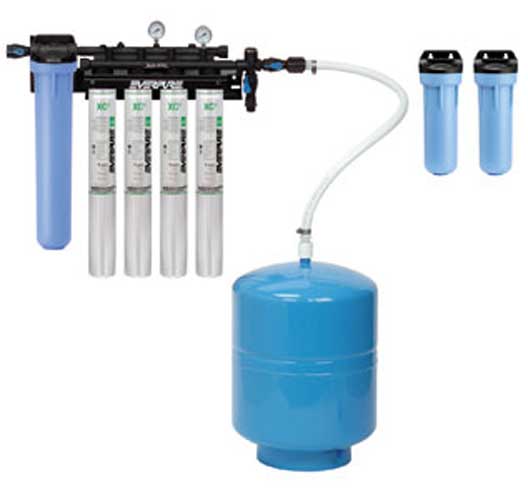

This complete drinking water system can be used to create water to high flow fountain, coffee, and ice machines.

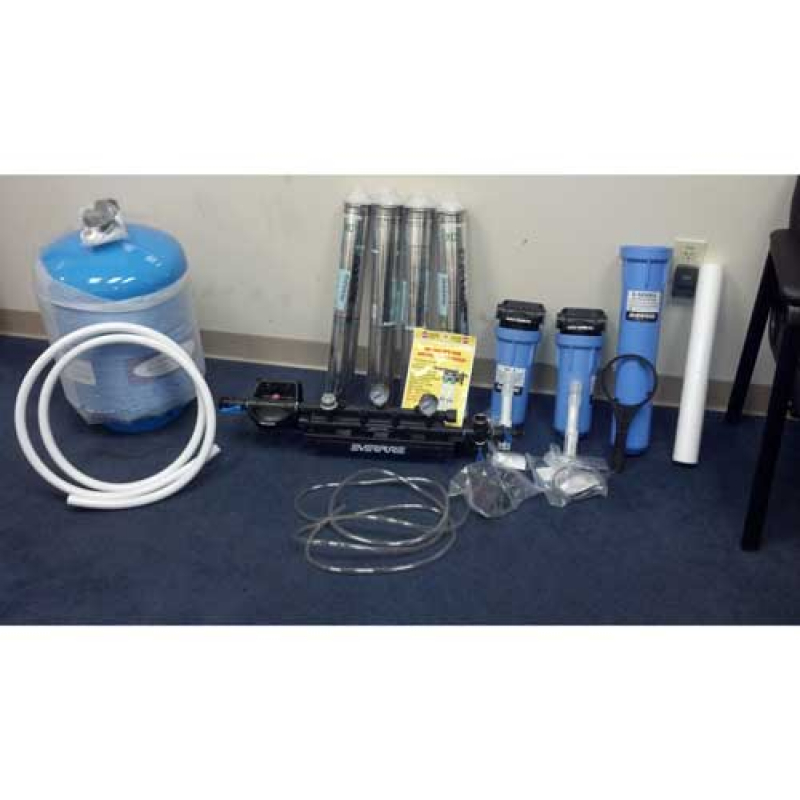

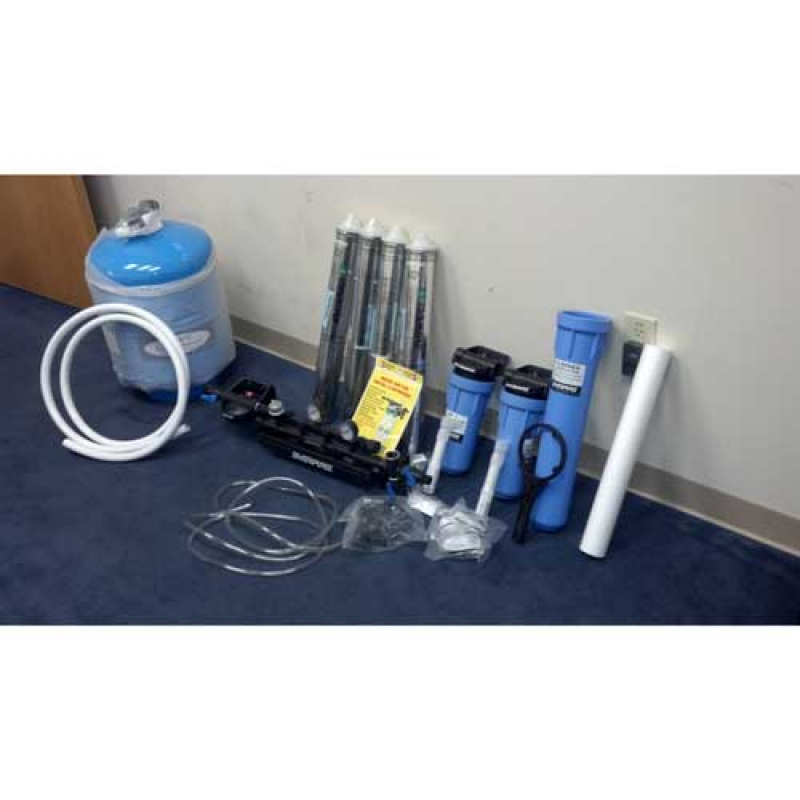

Include:

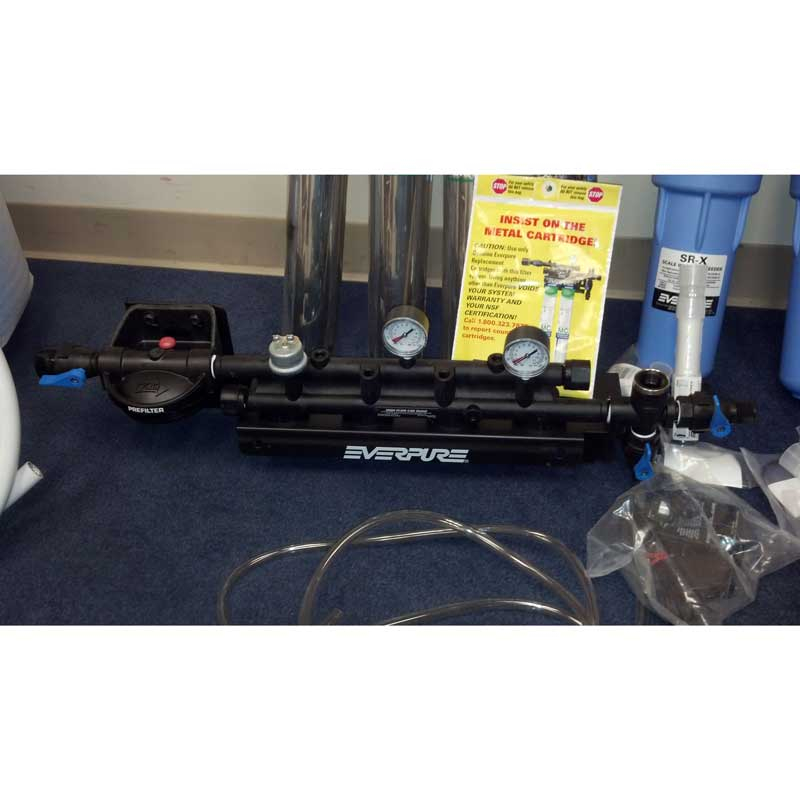

(1) High flow CSR Quad head with two pressure gauges
(4) XC-2 Cartridges
(2) SR-X Systems with SS-IMF cartridges (included)
(1) E20 housing with included EC210 Filter
(1) Sump wrench
(1) Everguard II Electronic Low Pressure Alarm
(1) Length of vinyl tubing for flushing system
(1) 9-Gallon Accumulator Tank with fittings and tubing

FEATURES:

• One system provides premium quality water to high flow fountain, coffee and ice machines
• New and improved Micro-Pure II® media inhibits the growth of bacteria
• Ideal where extreme water conditions demand larger capacity filters and surge tank to meet peak demand flow requirements
• Reduces chlorine taste and odor and other offensive contaminants that can adversely affect the taste of beverages
• Precoat submicron technology reduces dirt and particles as small as 1/2 micron in size and reduces health contaminants such as cysts
• 20" prefilter captures larger dirt particles
• Two mounted SR-X Systems with SS-IMF cartridges (included) inhibit limescale buildup in ice machines and coffee brewers
• Sanitary cartridge replacement is simple
• NSF Certified under NSF/ANSI Standards 42 and 53


INSTALLATION TIPS:
Choose a mounting location suitable to support the full weight of the system when operating

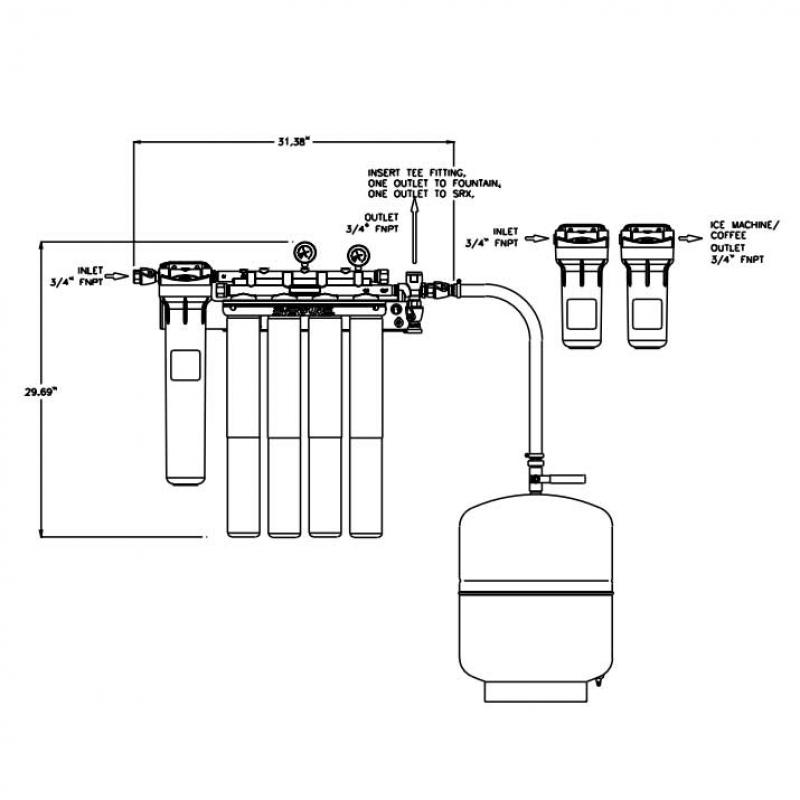

Use 3/4" water line
Fountain equipment connections are made to the outlet part of the system before the SR-X system
Coffee brewer and ice machine connections are made after the SR-X feeder; a tee is required
Install vertically with cartridges hanging down.
Allow 2-1/2" clearance below the cartridge for easy cartridge replacement
Flush cartridges by running water through flushing valve for five minutes at full flow
This system must be installed and maintained according to the manufacturer's instructions, including installation and replacement of filter cartridges
The contaminants or other substances removed or reduced by this drinking water system are not necessarily in your water. Do not use with water that is microbiologically unsafe or of unknown quality without adequate  disinfection before or after the system. Systems certified for cyst reduction may be used with disinfected water that may contain filterable cysts

System is packed in two boxes and can be shipped via UPS. Box 1, System: 44 lbs.; Box 2, Surge Tank: 28 lbs.
